Cube67
Modular Fieldbus System
Connect Sensors and Actuators the Cost-effective Way
Cube67 is Murrelektronik’s award winning, modular fieldbus system. It can be customized to meet the specific requirements of an installation solution. Cube67 is characterized by its single cable technology, multi function modules, flexible installation methods and robust, potted circuitry. The unique single cable module connection transfers both power and data from a single bus node to connected modules simplifying installation.
A wide model range allows many combinations
Connect Sensors and Actuators the Cost-effective Way
Cube67 is Murrelektronik’s award winning, modular fieldbus system. It can be customized to meet the specific requirements of an installation solution. Cube67 is characterized by its single cable technology, multi function modules, flexible installation methods and robust, potted circuitry. The unique single cable module connection transfers both power and data from a single bus node to connected modules simplifying installation.
A wide model range allows many combinations
- Bus nodes for most of the major protocols
- Up to 32 modules on a single IP address
- Installation lengths of up to 60m
- Star and linear topologies
- Analog, digital and special function modules
- Over 80 different function modules

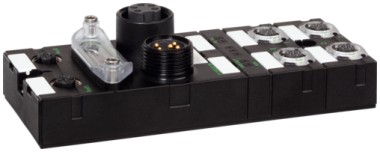

CUBE67+ BUS NODE
Ethernet/IP
Art.No.:56535
Weight:0.354 kg
Country of origin: CZ
Cube67+
EtherNet/IP
adjustable via Machine Options Management (MOM)
Variables for input/output data
I/O-Mapping
I/O-Check
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
Ethernet/IP
Art.No.:56535
Weight:0.354 kg
Country of origin: CZ
Cube67+
EtherNet/IP
adjustable via Machine Options Management (MOM)
Variables for input/output data
I/O-Mapping
I/O-Check
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.

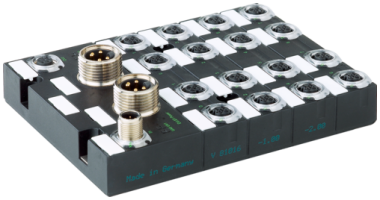

CUBE67 DIO16 DO16 E 16XM12 (1,6/2A)
Art.No.:56641
Weight:0.6 kg
Country of origin: CZ
Expansion module
DIO16 - 1.6 A DO16 - 2 A (E) - 16× M12
Digital inputs/outputs (multifunctional)
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
Art.No.:56641
Weight:0.6 kg
Country of origin: CZ
Expansion module
DIO16 - 1.6 A DO16 - 2 A (E) - 16× M12
Digital inputs/outputs (multifunctional)
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.

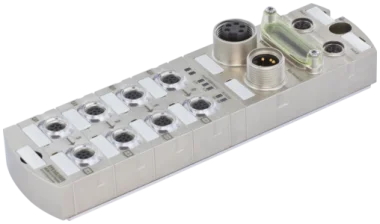

Cube67 Diagnostic Gateway
Diagnosis made easy, Simple system overview
Art.No.:56968
Weight:0.915 kg
Country of origin: DE
Cube67
Diagnostic gateway
Ethernet TCP/IP
Diagnosis made easy, Simple system overview
Art.No.:56968
Weight:0.915 kg
Country of origin: DE
Cube67
Diagnostic gateway
Ethernet TCP/IP

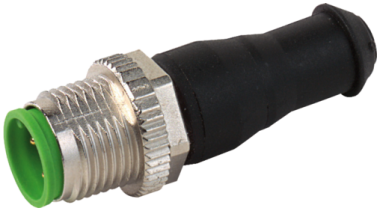

Bus terminating plug M12 male A-cod.
CUBE67
Art.No.:7000-15041-0000000
Weight:0.012 kg
Country of origin: DE
Cube67
Terminating resistor
Male
M12, 6-pole
A-coded
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request
CUBE67
Art.No.:7000-15041-0000000
Weight:0.012 kg
Country of origin: DE
Cube67
Terminating resistor
Male
M12, 6-pole
A-coded
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request
