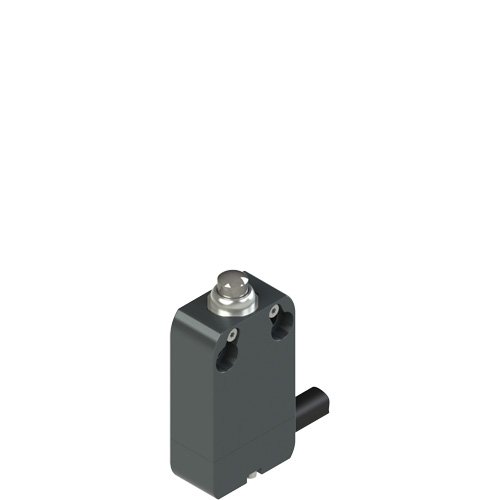

NA B110AA-DN2
Modular prewired switch with short plunger

General features
Protection degree : IP67 according to EN 60529 and IP69K according to ISO 20653
Housing : Metal housing, 20 mm fixing points
Contact block : 1NO+1NC snap action (B11)
Head : With short plunger
Kind of connection : Metal connector 1NO+1NC and PVC cable 5x0.75 mm²
Cable : Cable type N, lenght 2 m, 5 wires
Positive opening : Yes

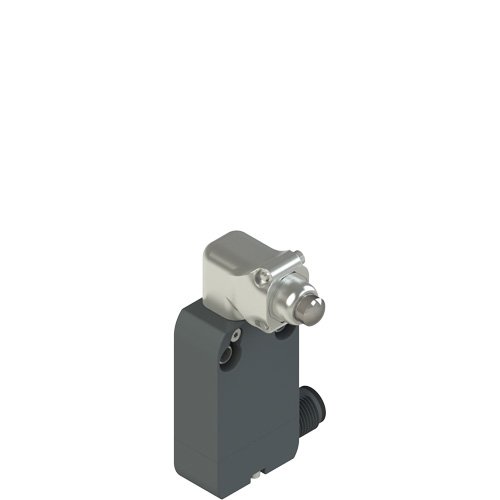

NF B110AB-DMKW5
Modular prewired switch with plunger

General features
Protection degree : IP67 according to EN 60529 and IP69K according to ISO 20653
Housing : echnopolymer housing, 20 mm fixing points
Contact block : 1NO+1NC snap action (B11)
Head : Plunger - with 90° transmission block
Kind of connection : Technopolymer connector M12 from right 4 poles
Positive opening : Yes

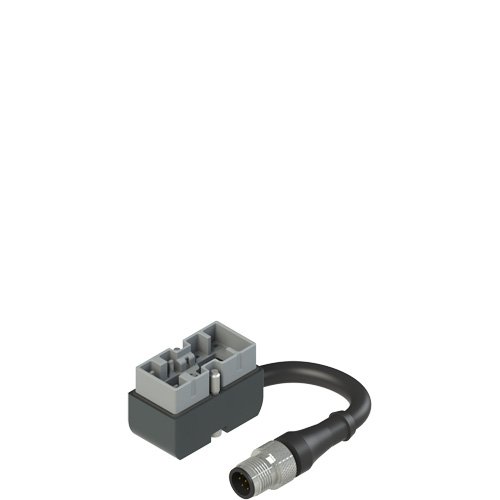

VN CM11DM0.2
Metal connector with cable and M12 connector, cable length 0.2 m, 1NO+1NC

General features
Kind of connection : Metal connector 1NO+1NC and PVC cable 5x0.75 mm²
Type of cable or connector : M12 connector, 5 poles

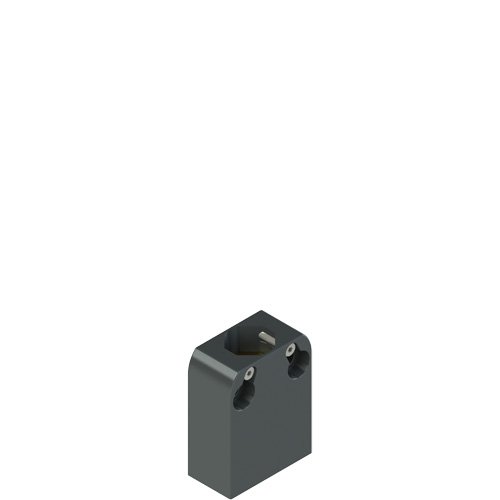

NA B11000
Metal housing NA with contact

General features
Protection degree : IP67 according to EN 60529 and IP69K according to ISO 20653
Housing : Metal housing, 20 mm fixing points
Contact block : 1NO+1NC snap action (B11)
Positive opening : Yes
