Emparro® Premium Power
Switch Mode Power Supply Units For Even Power Distribution
Murrelektronik's Emparro switch mode power supply units' efficiency rate of up to 95% is impressive! This reduces power loss to a minimum and the low energy consumption helps save a lot of money.
Efficiency up to 95%
Murrelektronik's Emparro switch mode power supply units' efficiency rate of up to 95% is impressive! This reduces power loss to a minimum and the low energy consumption helps save a lot of money.
Efficiency up to 95%
- 150% Power Boost for at least 4 seconds
- Metal housing with protective EMC characteristics
- Derating only at 60°C
- Slim design
- High mains failure bridging time
- Seven different models provide solutions for many applications
Emparro 10-100-240/12 S
Screw mounting
Art.No.:85712
Alternative product: 85434
Weight:0.73 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 12...15 V DC
Current: 10 A
Screw mounting
Art.No.:85712
Alternative product: 85434
Weight:0.73 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 12...15 V DC
Current: 10 A
Emparro 10-100-240/24 S
Screw mounting
Art.No.:85703
Alternative product: 85441
Weight:0.845 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 24...28 V DC
Current: 10 A
Screw mounting
Art.No.:85703
Alternative product: 85441
Weight:0.845 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 24...28 V DC
Current: 10 A
Emparro 10-100-240/48 S
Screw mounting
Art.No.:85724
Alternative product: 85439
Weight:1.265 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 48...56 V DC
Current: 10 A
Screw mounting
Art.No.:85724
Alternative product: 85439
Weight:1.265 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 48...56 V DC
Current: 10 A
Emparro 2,5-100-240/48 S
Screw mounting
Art.No.:85722
Alternative product: 85437
Weight:0.73 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 48...56 V DC
Current: 2.5 A
Screw mounting
Art.No.:85722
Alternative product: 85437
Weight:0.73 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 48...56 V DC
Current: 2.5 A
Emparro 20-100-240/24 S
Screw mounting
Art.No.:85704
Alternative product: 85442
Weight:1.27 kg
Country of origin: CZ
INPUT: 90...265 V AC/90...250 V DC
OUTPUT: 24...28 V DC
Current: 20 A
Screw mounting
Art.No.:85704
Alternative product: 85442
Weight:1.27 kg
Country of origin: CZ
INPUT: 90...265 V AC/90...250 V DC
OUTPUT: 24...28 V DC
Current: 20 A
Emparro 5-100-240/24 S
Screw mounting
Art.No.:85702
Alternative product:85440
Weight:0.73 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 24...28 V DC
Current: 5 A
Screw mounting
Art.No.:85702
Alternative product:85440
Weight:0.73 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 24...28 V DC
Current: 5 A
Emparro 5-100-240/48 S
Screw mounting
Art.No.:85723
Alternative product: 85438
Weight:0.855 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 48...56 V DC
Current: 5 A
Screw mounting
Art.No.:85723
Alternative product: 85438
Weight:0.855 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 48...56 V DC
Current: 5 A

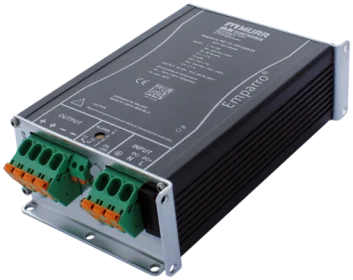

EMPARRO HD POWER SUPPLY 1-PHASE
IN: 100-240VAC OUT: 24-28VDC/10A
Art.No.:85449
Weight:1.487 kg
Country of origin: CZ
INPUT: 90...265 V AC/90...370 V DC
OUTPUT: 24 V DC
Current: 10 A
Protection IP20
rugged design
IN: 100-240VAC OUT: 24-28VDC/10A
Art.No.:85449
Weight:1.487 kg
Country of origin: CZ
INPUT: 90...265 V AC/90...370 V DC
OUTPUT: 24 V DC
Current: 10 A
Protection IP20
rugged design

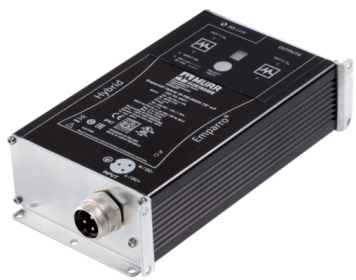

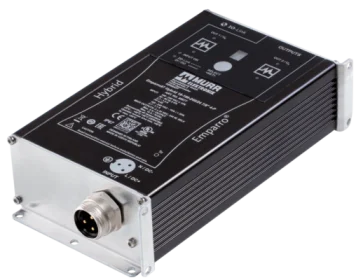

EMPARRO IP67 Power Supply 1-phase
OUT: 24VDC 10A - 7/8" 5P - SELV
Art.No.:85676
Alternative product: 9000-11112-2062020
Weight:1.6 kg
Country of origin: CZ
Emparro®67 Hybrid
2× MICO 7/8" IOL
5-pole
Current: 10 A
INPUT: 90...265 V AC/90...265 V DC
OUTPUT: 24...28 V DC
Preventive Diagnostic
Over current protection device
controllable via IO-Link
OUT: 24VDC 10A - 7/8" 5P - SELV
Art.No.:85676
Alternative product: 9000-11112-2062020
Weight:1.6 kg
Country of origin: CZ
Emparro®67 Hybrid
2× MICO 7/8" IOL
5-pole
Current: 10 A
INPUT: 90...265 V AC/90...265 V DC
OUTPUT: 24...28 V DC
Preventive Diagnostic
Over current protection device
controllable via IO-Link

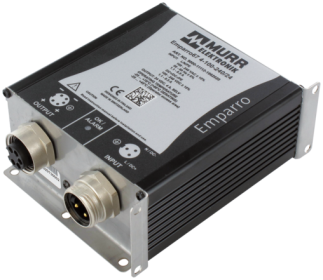

Emparro IP67 Power Supply 1-Phase
OUT: 24VDC 4A - 7/8" 5P - SELV
Art.No.:9000-11112-1962020
Weight:1.1 kg
Country of origin: CZ
Emparro®67
INPUT: 90...265 V AC/90...265 V DC
OUTPUT: 24 V DC (SELV), ±2%
Current: 4 A
OUT: 24VDC 4A - 7/8" 5P - SELV
Art.No.:9000-11112-1962020
Weight:1.1 kg
Country of origin: CZ
Emparro®67
INPUT: 90...265 V AC/90...265 V DC
OUTPUT: 24 V DC (SELV), ±2%
Current: 4 A

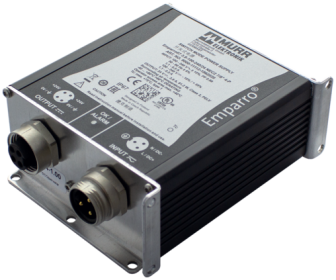

Emparro IP67 POWER SUPPLY 1-PHASE
OUT: 24VDC 3,8A - 7/8" 4P NEC - PELV
Art.No.:9000-11112-1862020
Weight:1.22 kg
Country of origin: CZ
Emparro®67
INPUT: 90...265 V AC/90...372 V DC
OUTPUT: 24 V DC (PELV), ±2%
Current: 3.8 A
NEC Class 2
OUT: 24VDC 3,8A - 7/8" 4P NEC - PELV
Art.No.:9000-11112-1862020
Weight:1.22 kg
Country of origin: CZ
Emparro®67
INPUT: 90...265 V AC/90...372 V DC
OUTPUT: 24 V DC (PELV), ±2%
Current: 3.8 A
NEC Class 2

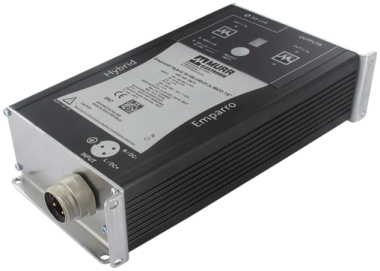

Emparro IP67 Power Supply 1-Phase
OUT: 24VDC 10A - M12L 5P - SELV
Art.No.:85678
Weight:1.85 kg
Country of origin: CZ
Emparro®67 Hybrid
2× MICO M12 IOL
M12 (female) 5-pole, L-coded
Current: 10 A
INPUT: 90...265 V AC/90...265 V DC
OUTPUT: 24...28 V DC
Preventive Diagnostic
Over current protection device
controllable via IO-Link
OUT: 24VDC 10A - M12L 5P - SELV
Art.No.:85678
Weight:1.85 kg
Country of origin: CZ
Emparro®67 Hybrid
2× MICO M12 IOL
M12 (female) 5-pole, L-coded
Current: 10 A
INPUT: 90...265 V AC/90...265 V DC
OUTPUT: 24...28 V DC
Preventive Diagnostic
Over current protection device
controllable via IO-Link
Emparro IP67 Power Supply 1-Phase
OUT: 24VDC 10A - 7/8" 4P - PELV
Art.No.:85687
Weight:1.85 kg
Country of origin: CZ
Emparro®67 Hybrid
2× MICO 7/8" IOL
4-pole
Current: 10 A
INPUT: 90...265 V AC/90...265 V DC
OUTPUT: 24...28 V DC
Preventive Diagnostic
Over current protection device
controllable via IO-Link
OUT: 24VDC 10A - 7/8" 4P - PELV
Art.No.:85687
Weight:1.85 kg
Country of origin: CZ
Emparro®67 Hybrid
2× MICO 7/8" IOL
4-pole
Current: 10 A
INPUT: 90...265 V AC/90...265 V DC
OUTPUT: 24...28 V DC
Preventive Diagnostic
Over current protection device
controllable via IO-Link
EMPARRO IP67 Power Supply 1-phase
OUT: 24VDC 10A - 7/8" 4P - SELV
Art.No.:85677
Weight:1.6 kg
Country of origin: CZ
Emparro®67 Hybrid
2× MICO 7/8" IOL
4-pole
Current: 10 A
INPUT: 90...265 V AC/90...265 V DC
OUTPUT: 24...28 V DC
Preventive Diagnostic
Over current protection device
controllable via IO-Link
OUT: 24VDC 10A - 7/8" 4P - SELV
Art.No.:85677
Weight:1.6 kg
Country of origin: CZ
Emparro®67 Hybrid
2× MICO 7/8" IOL
4-pole
Current: 10 A
INPUT: 90...265 V AC/90...265 V DC
OUTPUT: 24...28 V DC
Preventive Diagnostic
Over current protection device
controllable via IO-Link
Emparro IP67 Power Supply 1-Phase
OUT: 24VDC 10A - M12L 5P - PELV
Art.No.:85688
Weight:1.85 kg
Country of origin: CZ
Emparro®67 Hybrid
2× MICO M12 IOL
M12 (female) 5-pole, L-coded
Current: 10 A
INPUT: 90...265 V AC/90...265 V DC
OUTPUT: 24...28 V DC
Preventive Diagnostic
Over current protection device
controllable via IO-Link
OUT: 24VDC 10A - M12L 5P - PELV
Art.No.:85688
Weight:1.85 kg
Country of origin: CZ
Emparro®67 Hybrid
2× MICO M12 IOL
M12 (female) 5-pole, L-coded
Current: 10 A
INPUT: 90...265 V AC/90...265 V DC
OUTPUT: 24...28 V DC
Preventive Diagnostic
Over current protection device
controllable via IO-Link
Emparro IP67 Power Supply 1-Phase
OUT: 24VDC 10A - 7/8" 4P NEC - PELV
Art.No.:85679
Weight:1.85 kg
Country of origin: CZ
Emparro®67 Hybrid (PELV)
2× MICO 7/8" IOL
4-pole
Current: 2× 3.8 A galvanically separated
INPUT: 90...265 V AC/90...265 V DC
OUTPUT: 24...28 V DC
Preventive Diagnostic
Over current protection device
controllable via IO-Link
OUT: 24VDC 10A - 7/8" 4P NEC - PELV
Art.No.:85679
Weight:1.85 kg
Country of origin: CZ
Emparro®67 Hybrid (PELV)
2× MICO 7/8" IOL
4-pole
Current: 2× 3.8 A galvanically separated
INPUT: 90...265 V AC/90...265 V DC
OUTPUT: 24...28 V DC
Preventive Diagnostic
Over current protection device
controllable via IO-Link
EMPARRO POWER SUPPLY 1-PHASE
IN: 100-240VAC OUT: 48-56VDC/10A
Art.No.:85439
Weight:1.256 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 48...56 V DC
Current: 10 A
IN: 100-240VAC OUT: 48-56VDC/10A
Art.No.:85439
Weight:1.256 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 48...56 V DC
Current: 10 A
EMPARRO POWER SUPPLY 1-PHASE
IN: 100-240VAC OUT: 12-15VDC/10A
Art.No.:85434
Weight:0.66 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 12...15 V DC
Current: 10 A
IN: 100-240VAC OUT: 12-15VDC/10A
Art.No.:85434
Weight:0.66 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 12...15 V DC
Current: 10 A
EMPARRO POWER SUPPLY 1-PHASE
IN: 100-240VAC OUT: 48-56VDC/5A
Art.No.:85438
Weight:0.85 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 48...56 V DC
Current: 5 A
IN: 100-240VAC OUT: 48-56VDC/5A
Art.No.:85438
Weight:0.85 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 48...56 V DC
Current: 5 A
EMPARRO POWER SUPPLY 1-PHASE
IN: 100-240VAC OUT: 48-56VDC/2,5A
Art.No.:85437
Weight:0.66 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 48...56 V DC
Current: 2.5 A
IN: 100-240VAC OUT: 48-56VDC/2,5A
Art.No.:85437
Weight:0.66 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 48...56 V DC
Current: 2.5 A
EMPARRO POWER SUPPLY 1-PHASE
IN: 100-240VAC OUT: 24-28VDC/10A
Art.No.:85441
Weight:0.85 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 24...28 V DC
Current: 10 A
IN: 100-240VAC OUT: 24-28VDC/10A
Art.No.:85441
Weight:0.85 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 24...28 V DC
Current: 10 A
EMPARRO POWER SUPPLY 1-PHASE
IN: 100-240VAC OUT: 24-28VDC/20A
Art.No.:85442
Weight:1.256 kg
Country of origin: CZ
INPUT: 90...265 V AC/90...250 V DC
OUTPUT: 24...28 V DC
Current: 20 A
IN: 100-240VAC OUT: 24-28VDC/20A
Art.No.:85442
Weight:1.256 kg
Country of origin: CZ
INPUT: 90...265 V AC/90...250 V DC
OUTPUT: 24...28 V DC
Current: 20 A
EMPARRO POWER SUPPLY 1-PHASE
IN: 100-240VAC OUT: 24-28VDC/5A
Art.No.:85440
Weight:0.66 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 24...28 V DC
Current: 5 A
IN: 100-240VAC OUT: 24-28VDC/5A
Art.No.:85440
Weight:0.66 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 24...28 V DC
Current: 5 A
EMPARRO POWER SUPPLY 1-PHASE, PRIMARY SWITCHED
IN: 100-240VAC OUT: 24-28VDC/5A
Art.No.:9000-11112-0921111
Weight:0.66 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 24...28 V DC
Current: 5 A
Varnished board
IN: 100-240VAC OUT: 24-28VDC/5A
Art.No.:9000-11112-0921111
Weight:0.66 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 24...28 V DC
Current: 5 A
Varnished board
EMPARRO POWER SUPPLY 1-PHASE, PRIMARY SWITCHED
IN: 100-240VAC OUT: 24-28VDC/10A
Art.No.:9000-11112-1221111
Weight:0.85 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 24...28 V DC
Current: 10 A
Varnished board
IN: 100-240VAC OUT: 24-28VDC/10A
Art.No.:9000-11112-1221111
Weight:0.85 kg
Country of origin: CZ
INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 24...28 V DC
Current: 10 A
Varnished board
EMPARRO POWER SUPPLY 1-PHASE, PRIMARY SWITCHED
IN: 100-240VAC OUT: 24-28VDC/20A
Art.No.:9000-11112-1421111
Weight:1.256 kg
Country of origin: CZ
INPUT: 90...265 V AC/90...250 V DC
OUTPUT: 24...28 V DC
Current: 20 A
Varnished board
IN: 100-240VAC OUT: 24-28VDC/20A
Art.No.:9000-11112-1421111
Weight:1.256 kg
Country of origin: CZ
INPUT: 90...265 V AC/90...250 V DC
OUTPUT: 24...28 V DC
Current: 20 A
Varnished board
EMPARRO67 POWER SUPPLY 1-PHASE
IN: 100-240VAC OUT: 24VDC/8A
Art.No.:9000-11112-2062020
Weight:1.55 kg
Country of origin: CZ
Emparro®67
INPUT: 90...265 V AC/90...265 V DC
OUTPUT: 24 V DC (SELV), ±2%
Current: 8 A
IN: 100-240VAC OUT: 24VDC/8A
Art.No.:9000-11112-2062020
Weight:1.55 kg
Country of origin: CZ
Emparro®67
INPUT: 90...265 V AC/90...265 V DC
OUTPUT: 24 V DC (SELV), ±2%
Current: 8 A
Powered by
MakeWebEasy.com
