M12 Distribution Systems – Metal

Molded Forms for Harsh Environments

Distribution boxes are designed for consistently plugged solutions from the control into the field. They can be easily separated for assembly and transport. The distribution boxes feature a metal housing that withstands mechanical and thermal stress. This makes them suitable for applications in harsh environments.

Rugged, Resistant to Media, Sealed

Quick installation with pre-wired and tested cables
Pre-wired homerun cable or pluggable M23 connection
High-quality PUR cable with wide wire cross section
Shielded models for EMC compatible installations
Sealed because fully potted

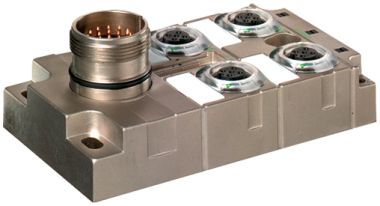

MVP-METALL, 4XM12, 5POLE, M23 19POL. CON.

Connector exit frontside

Art.No.:8000-54722-0000000
Weight:0.32 kg
Country of origin: CZ

4-way UNIVERSAL, shielded
M23 plug connection, 19-pole
without LED for analog signals up to 125 V AC/DC
Replaces identical product (Art.No. 27533)
M12 contacts 1, 2, 3, 4 single wired; common PE

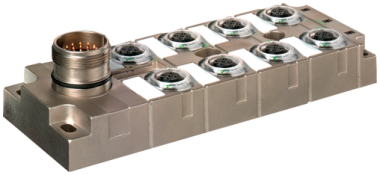

MVP-METALL, 8XM12, 5POLE, M23 19POL. CON.

Connector exit frontside

Art.No.:8000-58520-0000000
Weight:0.467 kg
Country of origin: CZ

8-way, 5-pole
M23 plug connection, 19-pole
with LED for digital PNP-signals 24 V DC
Replaces identical product (Art.No. 27535)
Connection cables are in the online shop under "Connection Technology

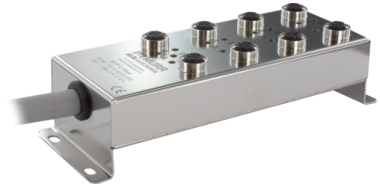

MVP12 Steel F&B, 8XM12, 5POLE, PRE-WIRED CABLE

10.0m TPE-V 16x0.5+3x1.0

Art.No.:8044-78510-4531000
Weight:2.65 kg
Country of origin: DE

5-pole
10.0 m
Further cable lengths on request.
The resistance to aggressive media should be individually tested for your application. Further details on request.
