Position switches for standard applications

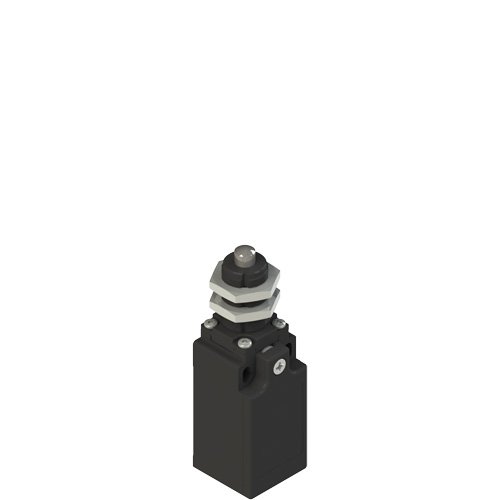

FR 512-M2
Position switch with threaded piston plunger

General features
Housing : Technopolymer housing, one threaded M20x1,5 conduit entry (FR series)
Contact block : 1NO+1NC snap action (B5)
Head : With threaded piston plunger
Protection degree : IP67 according to EN 60529
Positive opening : Yes

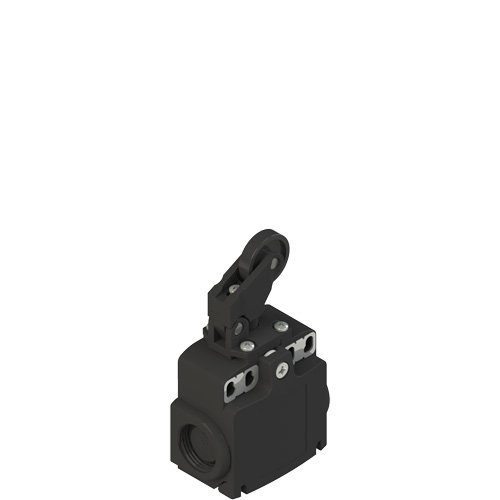

FX 507-M2
Position switch with adjustable one-way roller

General features
Housing : Technopolymer housing, two threaded M20x1,5 conduit entries (FX series)
Contact block : 1NO+1NC snap action (B5)
Head : With adjustable one-way roller
Protection degree : IP67 according to EN 60529
Positive opening : Yes

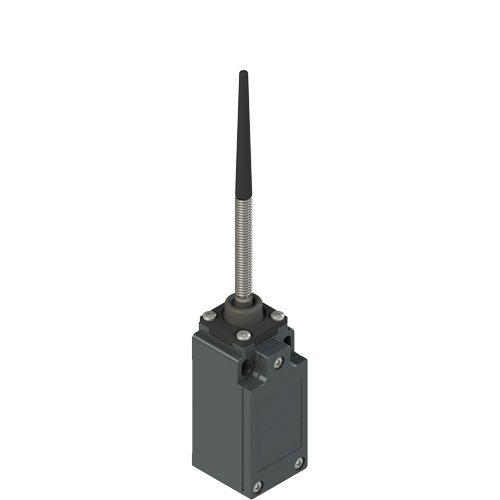

FM 520-M2
Position switch, coil spring with plastic point

General features
Housing : Metal housing, one threaded M20x1,5 conduit entry (FM series)
Contact block : 1NO+1NC snap action (B5)
Head : With coil spring with plastic point
Protection degree : IP67 according to EN 60529

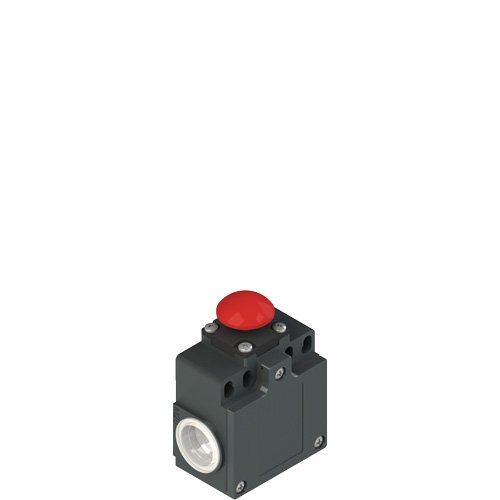

FZ 514-M2
Position switch with mushroom head plunger

General features
Housing : Metal housing, two threaded M20x1,5 conduit entries (FZ series)
Contact block : 1NO+1NC snap action (B5)
Head : With mushroom head plunger
Protection degree : IP67 according to EN 60529
Positive opening : Yes

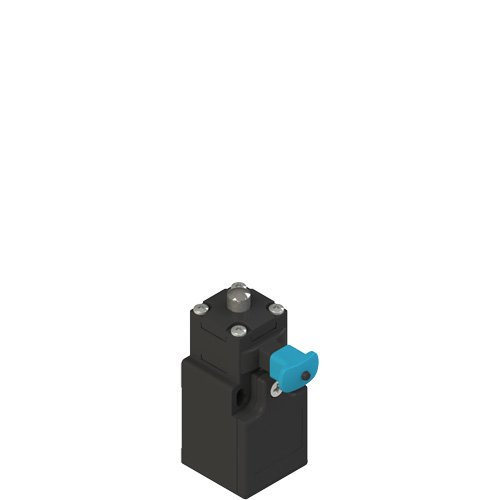

FK 3301-W3M1
Position switch with short piston plunger and reset device

General features
Housing : Technopolymer housing, one threaded M16x1,5 conduit entry (FK series)
Contact block : 1NO+1NC slow action (B33)
Head : With reset device and plunger
Protection degree : IP67 according to EN 60529
Positive opening : Yes

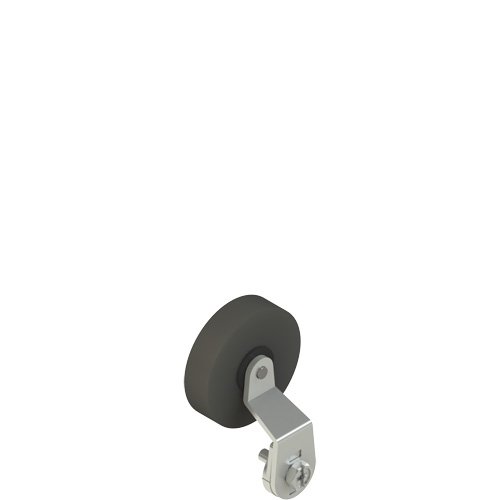

VF LE51-R5
Lever with central rubber roller, 40 mm diameter

General features
Azionatore : Leva LE51-R5
