MVK Pro and IMPACT67 Pro

Compact IO-Link master modules with eight multifunctional master ports

Compact IO-Link master modules with eight multifunctional master ports are the most intelligent way to connect IO-Link devices. IP67 rated fieldbus modules are an important component in decentralized instal­lations. They replace complexly wired and expensive terminal boxes.

Combine these modules with our selection of IO-Link hubs and analog converters to increase your flexibility while minimizing hardware costs.

In addition to pure process data (I/Os), the new Pro modules also provide secondary extended diagnostic data (voltage, current and temperature values) for both the respective ports and the entire module. This allows anomalies to be detected and the actual process to be optimized via data analysis. With the help of OPC UA, this can be done completely without a controller using a standard protocol.

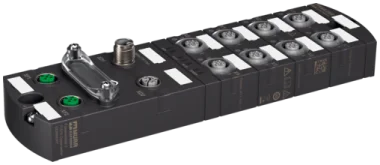

IMPACT67 Pro PN DIO8 IOL8 M12L 5P
PROFINET, compact module, plastic

Art.No.:54630
Weight:0.47 kg
Country of origin: DE
Digital inputs/outputs
Ethernet 10/100 Mbit/s; M12, D-coded
IO-Link V1.1
M12 Power, 5-pole, L-coded
M12, 5-pole, A-coded
Housing fully potted.
Connection cables are in the online shop under "Connection Technology

 Contact us

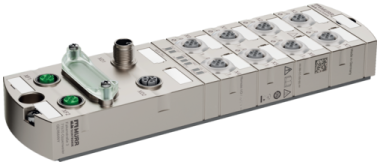

MVK Pro MPNIO DIO8 IOL8 M12L 5P

PROFINET, compact module, metal

Art.No.:54610
Weight:0.92 kg
Country of origin: DE
Digital inputs/outputs
Ethernet 10/100 Mbit/s; M12, D-coded
IO-Link Master V1.1
M12 Power, 5-pole, L-coded
M12, 5-pole, A-coded
Housing fully potted.
Connection cables are in the online shop under "Connection Technology

 Contact us
