MK V11D06
Microswitch with threaded plunger
General features

Ambient temperature:From -25°C to +85°C
Housing:Technopolymer housing
Terminal type:Screws with self-lifting plate
Contact block:1NO+1NC changeover
Maximum protection degree:IP00 without terminal cover
IP20 with terminal cover VF C01, VF C03
IP40 with terminal cover VF MKCx1x, VF C02
Actuation type:Direct action
Actuator:With short plunger
Positive opening:Yes

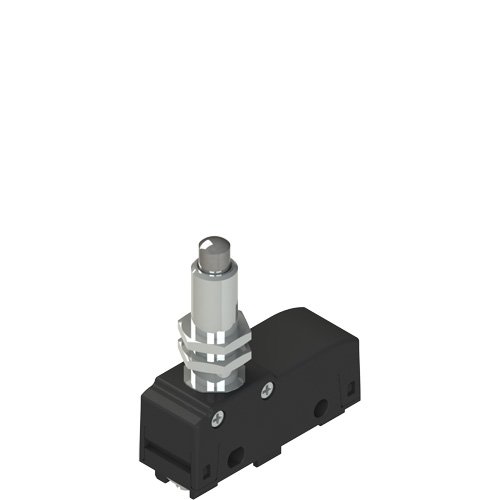

MK V11D08
Microswitch with threaded plunger
General features

Ambient temperature:From -25°C to +85°C
Housing:Technopolymer housing
Terminal type:Screws with self-lifting plate
Contact block:1NO+1NC changeover
Maximum protection degree:IP00 without terminal cover
IP20 with terminal cover VF C01, VF C03
IP40 with terminal cover VF MKCx1x, VF C02
Actuation type:Direct action
Actuator:With threaded M10x0.75 plunger
Positive opening:Yes

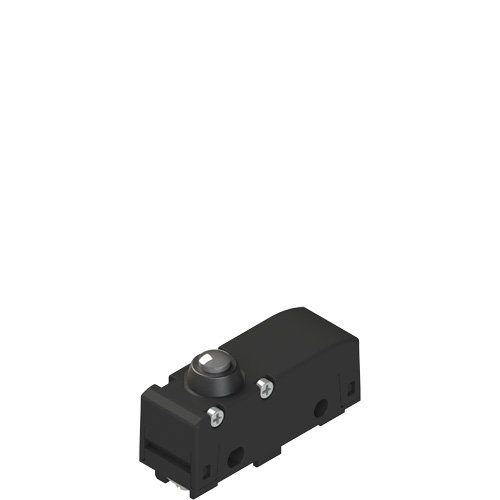

MK V11D05
Microswitch with short plunger
General features

Ambient temperature:From -25°C to +85°C
Housing:Technopolymer housing
Terminal type:Screws with self-lifting plate
Contact block:1NO+1NC changeover
Maximum protection degree:IP00 without terminal cover
IP20 with terminal cover VF C01, VF C03
IP40 with terminal cover VF MKCx1x, VF C02
Actuation type:Direct action
Actuator:With short plunger
Positive opening:Yes
