TUBULAR  -  M18
UK1

M18 ultrasonic sensors with standard body.

• Models with adjustable digital output
• Models with current or voltage analogue outputs
• Working area adjusting (single point teach, standard window, adjustable hysteresis) byTeach-in button suitable for all models for a fast coming into work
• Multifunction LED indicator: output state, echo presence, fw identification, teach block
• Plastic or metallic (AISI 316L) housing, M12 plug exit and PVC cable

TUBULAR  -  M18 SHORT HOUSING
UK6

M18 ultrasonic sensors, with short body (where application ask for a limited installation space).

• Sensing distance from 300 mm to 1200 mm
• Plastic housing models and stainless steel models
• PNP, NPN, Analogue (current or voltage), IO-Link outputs, double digital or mixed outputs (standard)
• Adjustment via Teach-in button (standard body) or via cable (short body)
• M12 plug and cable output
• IP67 protection degree

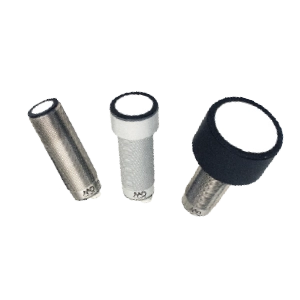

TUBULAR  -  M30
UT

M30 ultrasonic sensors, from ø30 mm transducer to large front transducer for longer detection distances.

• Sensing distance from 3500 mm to 8000 mm
• Plastic housing models and stainless steel models
• PNP, NPN, Analogue (current or voltage), IO-Link outputs, double digital or mixed outputs
• Models with remote Teach-in and models with the Teach-in button
• M12 plug and cable output
• IP67 protection degree

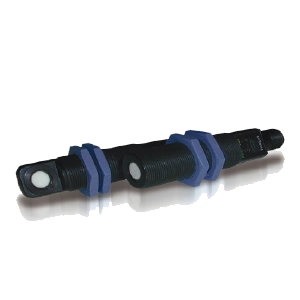

TUBULAR  -  M18
US18

US18-PA/PR series guarantees a small blind zone providing a wide operating range, are available in two different barrel housings with discrete or analog output.

• Distance de détection 30...300 mm
• Résolution du modèle analogique : 0,5 mm (mode LENT), 1 mm (mode RAPIDE)
• Boîtier en plastique tubulaire M18 avec détection axiale et à angle droit
• Sortie bipolaire discrète (1 NPN et 1 PNP) ou avec sortie analogique 4-20 m ou 0-10 V
• Modèles avec apprentissage à distance et modèles avec le bouton Teach-in
• Connecteur M12
• IP67, NEMA 6-P

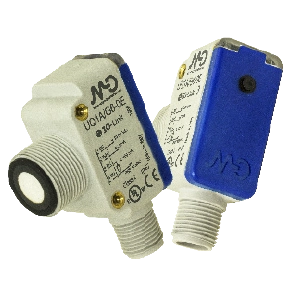

CUBIC / M18
UQ

M18 thread + cubic housing ultrasonic sensor with both the advantages of a cylindrical and a cubic sensor for the mounting conditions.

• 300 mm to 1200 mm
• Plastic housing models and stainless steel models
• PNP, NPN, Analogue (current or voltage), IO-Link outputs, double digital or mixed outputs (standard body)
• Adjustment via Teach-in button
• M12 plug and cable output
• IP67 protection degree

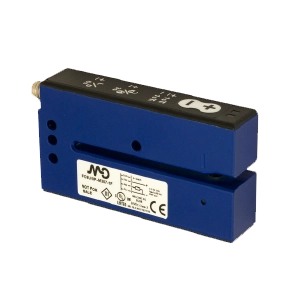

FORK
FC8

Ultrasonic slot sensors with high switching frequency to detect any type of labels opaque and transparent.

• High resolution up label 2 mm with gap 2 mm
• High swithing frequency 1500 Hz
• Dynamic and static teach-in via cable or by buttons
• Aluminium housing
• NPN and PNP output with M8 4-poles
• Rugged and sturdy aluminium housing

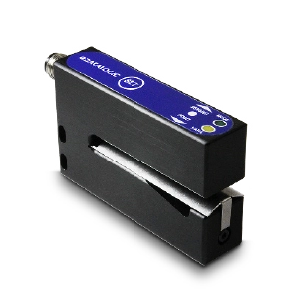

FORK
SRX3-FORK/LABEL

SRX-3 introduces state-of-the-art ultrasonic technology able to detect any type of label dispensed on any type of roll support, allowing seamless detection of transparent label on clear roll support or to check single/double clear films.

• Dynamic or static teach models
• Slot size 3 mm
• High resolution up to 2 mm label gap
• M8 connector with PNP or NPN output
• M12 connector with PNP/NPN output and external Teach-in
• Rugged and sturdy aluminium housing
