Model No.: KS06
Function Type: Infrared Range and Communication System
IP Rating: IP65
Response Time: ≤10ms
Resolution/Detection Capability: 14mm, 20mm, 30mm, 40mm
Operating Range: 0~3m，0~6m, 2~9m（customeried）
Output Type: PNP Or NPN
Safety Standard: Type 4
Applicable Standards: GB/T19436.1; GB/T 19436.2; GB4584-2007

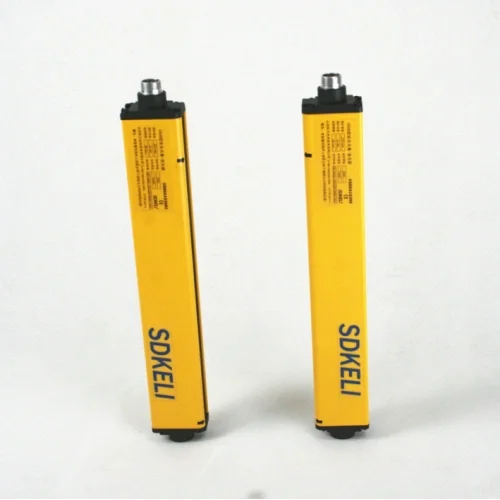

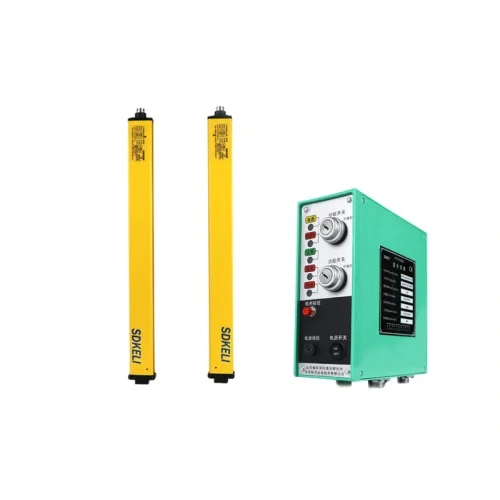

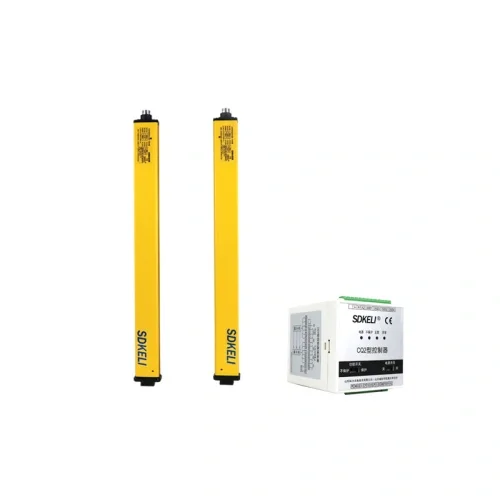

Safety light curtains protect personnel from injury and machines from damage by creating a sensing screen that guards machine access points and perimeters. Type KsaS06 light curtains protect personnel from injury and machines from damage by guarding points of operation, access, areas and perimeters. Type KS06 light curtains are a cost-effective light curtain safety solution for guarding lower-risk applications, where the result of an accident is only a slight injury.
The KS06 Safety Light Curtain meets requirement of safety lavel 4. KS06 AOPD can effectively detect all apaque objects in the light curtain area that exceed the detection accuracy. It is applicable to the safety protection for mechanical presses, hydraulic machines, shears, bending machines and other dangerous places.
